TANKBOSS Overfill Alarm BI4000 Series
Non-returnable
$275.00 - $1,800.00
Tags:
BI 4000H Series of overfill alarms. Hazardous and non hazardous.
Why? Reliable, Flexible, Rugged, Extended Service, Heavy Duty, Remote Operation, Unattended Refuelling, BIM Integration, Radio, Hazardous Area Approved, ATEX Compliant, Australian Made.
Design
Power Options
Hardous Rting
Choose Quantity
Product Details

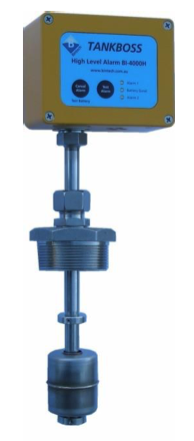

This Overfill Alarm provides an Audible and Visual alarm for monitoring level, and overfill events. The init can be direct mounted, or located away from the sensor. The powerful alarm will be heard over thje sound of noisy pumping equipment.
Orientation: Vertical ± 30 o
Alarms: Warble Siren 97 dBA and flashing LED
Alarm Duration: 2min
Alarm Reset: Push button
Alarm Test: Push button to test siren
Battery Test: Push button (Green LED - good, No LED - replace)
Battery Life: 1 year estimated with 2 timeout operations per day
Transmission Limit: 50 ohm loop between level switch and alarm
Electrical Input: Normally open switch
Process Connection: 2 inch BSP (Other process connections as factory options)
Adjustment: Tank level threshold set via sensor position
Accuracy: Repeatability 1%
Operating Temperature: -10oC to 65oC
Power Requirements: 6 Vdc (4xAAA)
Dimensions: L x H x D, 115 x 90 x 55 mm
Compliance: AS1940 for overfill indication
